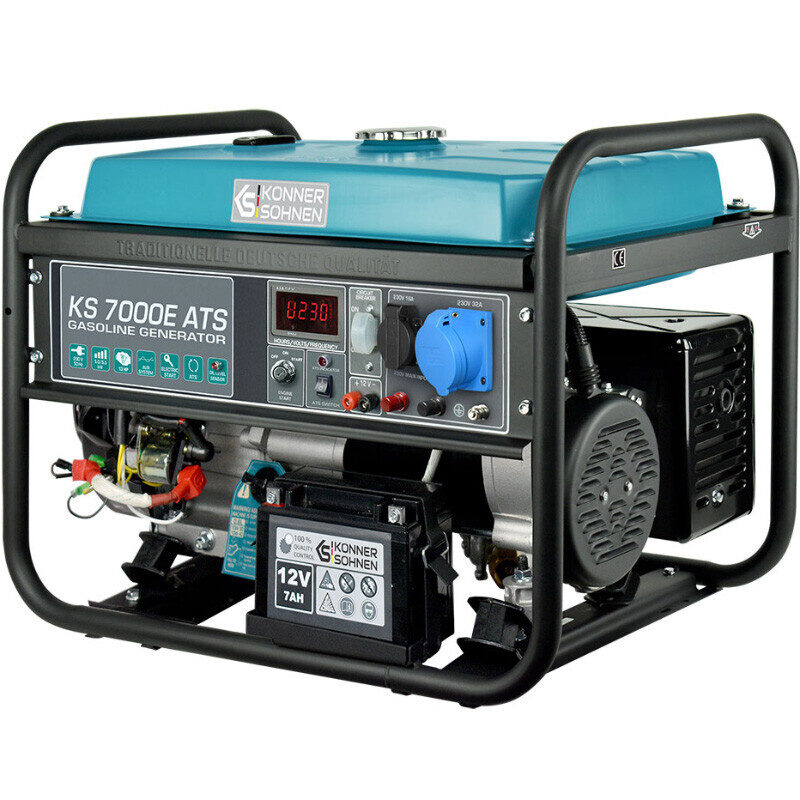

KONNER & SOHNEN KS 7000E-ATS
For discounts, contact us by e-mail or by filling out the form found here:
One of the unique features of the KS 7000E ATS generator is the built-in ATS unit (automatic transfer switch). This function allows the generator to monitor the power supply and automatically turn on in case of a power outage, then automatically turn off when the power is restored. This function is indispensable and very useful in buildings with strict temperature or lighting control, especially when there is no supervision staff.
The automatic transfer does not require complex additional equipment and installation. The ATS unit is already built into the generator, making installation as simple as possible, and these models are affordable for every budget.
The "Könner & Söhnen" engine series has undergone many multi-level tests, which makes them highly reliable. The generators comply with all global and European quality standards, including the latest EURO V emissions standards, certified by European quality certificates. Each engine and generator has its own unique serial number, which allows control over production and service quality.
"Könner & Söhnen" engines feature easy start-up and low vibration. The KS 7000 petrol generator series is equipped with a reliable 1-cylinder 13 HP engine.
The generator control panel with ATS function (automatic transfer switch) is equipped with power terminals, an ATS switch, and an operation indicator.
The ergonomic control panel allows for easy operation control with conveniently placed functions: modern LED display (hour meter, frequency, voltage), electric start, emergency (automatic switch) button, low oil level sensor, outputs, etc.
This series includes models for both single-phase and three-phase consumers. The generator control panel with ATS function has appropriate 230V and 400V network connections.
The easy start system allows for quick engine start-up with minimal effort. For user convenience, these types of generators come with three start modes – manual, electric, and automatic. More powerful models are additionally equipped with an electric start system.
The generators are equipped with an enlarged steel fuel tank, which extends the generator's operating time without refueling. The fuel level indicator is located on the tank for convenient use.
All models are equipped with rubber feet to reduce vibration. Thanks to the rubber dampers, the working generator will not damage the floor covering, and the frame coating will not be scratched.
Type: Petrol Generator
Power Supply: Petrol
Engine Displacement (cm³): 389
Weight (kg): 76.8
Fuel Tank Capacity (l): 25
Oil Tank Capacity (l): 1.1
Sound Pressure Level (dB(A)): 70
Sound Power Level (dB(A)): 95
Voltage (V): 400; 220 — 240
Protection Class: IP23M
Device Dimensions (L/W/H), cm: 68 x 54.5 x 55
Power (HP): 13
Overload Protection: Yes
Operation Time (h): 17 (at 50% load)
Fuel Consumption (l/h): 1.4
Starter: Electric; Manual
With Handle: Yes
Number of Outlets: 2
With Wheels: No
Current (A): 16; 32
Emission Standard: EURO 5
Engine Model: KS 390
Maximum Power (W): 5500
Rated Power (W): 5000
