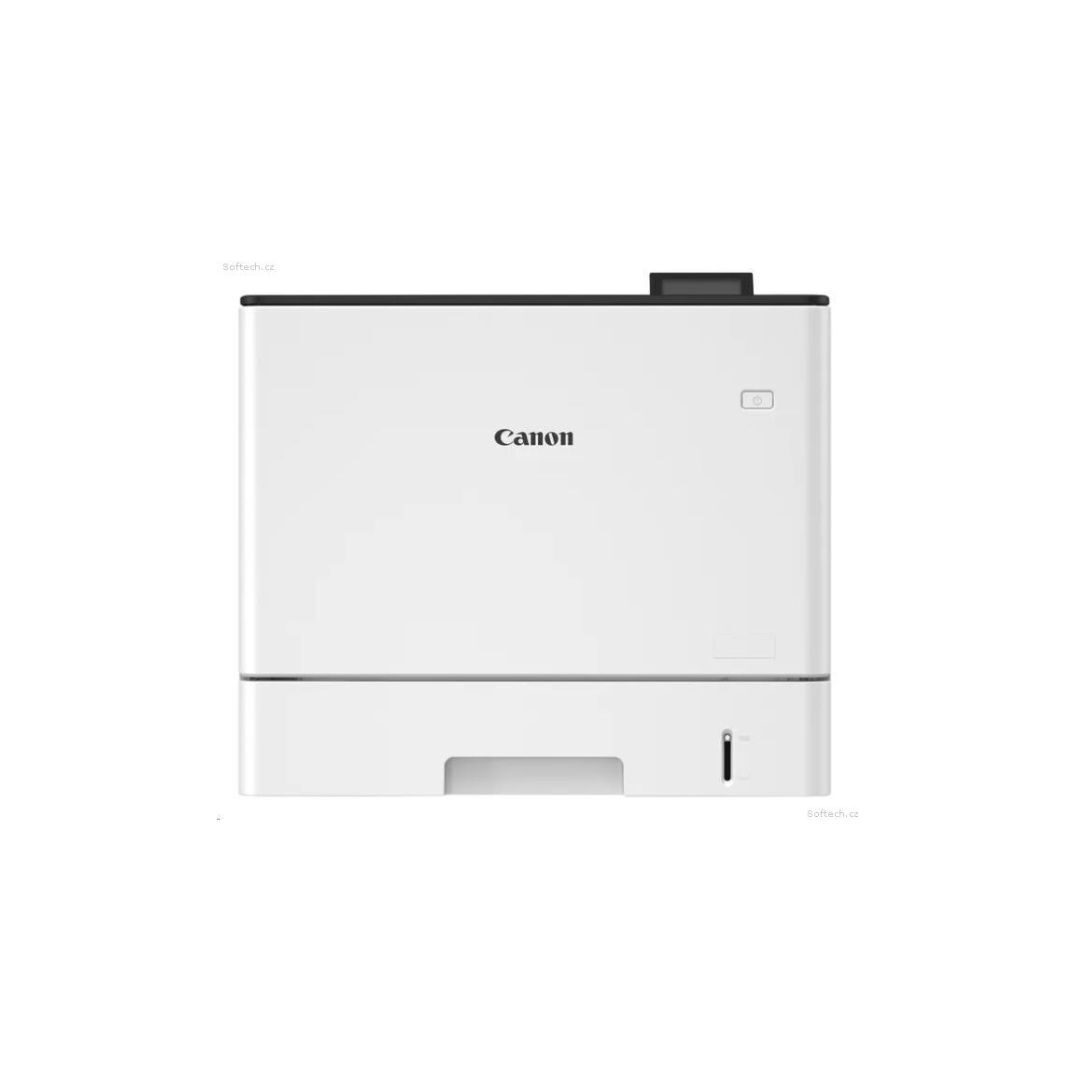

Canon i-SENSYS X C1538P II 6173C002
For discounts, contact us by e-mail or by filling out the form found here:
The set includes an original toner.
Device Type
Color Laser Printer with Single Function
Available Functions
Printing
Technical Print Data
Print Speed
Single-sided: Up to 38 pages/min (A4)
Up to 59 pages/min (A5 landscape format)
Double-sided: up to 38 pages/min (A4) from cassette, 21 pages/min (A4) from multi-purpose tray
Printing Method
Color Laser Beam Printing
Print Resolution
Up to 1200 x 1200 dpi
Warm-Up Time
Print completion message display: Approximately 2 seconds or less after power-on
First Print Out Time
Color: approximately 6.3 seconds
Monochrome: approximately 5.3 seconds
Printer Languages
UFRII (Ultra Fast Rendering), PCL5c1, PCL6, Adobe® PostScript3
Fonts
93 PCL fonts (93 Roman, 10 Bitmap fonts, 2 OCR fonts)
Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese)2
Barcode fonts3
136 PostScript fonts
Print Margins
4 mm from top, bottom, left, and right edges
Advanced Printing Features
Encrypted Secure Print
Secure Print
Print from USB memory (JPEG/TIFF/PDF/XPS)
Barcode Printing4
iOS: AirPrint, Canon PRINT Business app
Android: Mopria certification, Canon Print Service Plugin, Canon PRINT Business app
Microsoft Universal Print
Media Feed
Paper Input (Standard)
550-sheet Cassette
100-sheet Multi-purpose Tray
Paper Input (Optional)
Three 550-sheet Cassette (Paper Feed Unit PF-D1)
550-sheet Cassette (Cassette Feed Unit AV1)
Maximum Paper Input Capacity
2300 sheets
Paper Output
200 sheets
Media Types
Multi-purpose Tray: Plain Paper, Recycled Paper, Heavy Paper, Thin Paper, Colored Paper, Coated Paper, Hole-punched Paper, Postcards, Envelopes
Cassette: Plain Paper, Recycled Paper, Heavy Paper, Thin Paper, Labels, Colored Paper, Hole-punched Paper
Media Sizes
Cassette (Standard): A4, A5, A5 (Landscape), A6, B5, B6, Legal, Executive, Statement, GLTR, 16K; custom sizes: min. 101.6 x 148 mm; max. 216.0 x 297 mm.
Multi-purpose Tray: A4, A5, A5 (Landscape), A6, B5, B6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, ILGL, GLGL, Foolscap, 16K, Postcards, Envelopes (COM10, Monarch, C5, DL); custom sizes: min. 76.2 x 127 mm; max. 216.0 x 355.6 mm.
Cassette (Optional): A4, A5, A5 (Landscape), A6, B5, B6, Legal, Letter, Executive, Statement, GLTR, ILGL, GLGL, Foolscap, F4A, 16K, custom sizes: min. 101.6 x 148 mm; max. 216.0 x 355.6 mm
Media Weight
Cassette (Standard and Optional): 60–163 g/m²
Multi-purpose Tray: 60–216 g/m²
Duplex Printing
Automatic
Cassette: A4, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, ILGL, GLGL, Foolscap, F4A, 16K
Custom sizes: min. 148 x 210 mm; max. 216 x 355.6 mm.
60–163 g/m²
Interface and Software
Interface Type
USB 2.0 Hi-Speed, 10BASE-T / 100 BASE-TX / 1000BASE-T, Wireless 802.11b/g/n, Direct Wireless Connection
Operating System Compatibility
Windows® 11/ Windows® 10 / Server® 2022 / Server® 2019 / Server® 2016 /
Mac OS X version 10.13 or later
Linux5 / Citrix
Network Protocol
Printing:
TCP/IP (LPD/Port9100/IPP/IPPS/FTP/WSD)
Management:
SNMPv1, SNMPv3 (IPv4, IPv6)
Security: TLS1.3, IPSec, IP/Mac Address Filtering, IEEE802.1X (LAN/WLAN), SNMPv3, SSL (HTTPS, IPPS), Dual Network Support
Wireless Security:
Infrastructure Mode:
WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES)
Access Point Mode:
WPA2-PSK (AES)
Wi-Fi Direct Mode:
WPA2-PSK (AES)
Software and Printer Management
Remote User Interface (RUI),
Remote Operation Viewer,
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: server software for centralized office equipment management.
eMaintenance: embedded service RDS provides remote eMaintenance services like counter readings, automatic consumables monitoring, and remote diagnostics.
Content Delivery System: server platform provides automatic device firmware updates.
Compatibility with uniFLOW online/uniFLOW online Express/uniFLOW
General Characteristics
Recommended Monthly Print Volume
1500–5000 pages per month
Performance
50,000 pages
Processor Speed
1.6 GHz x 2
Memory
2 GB
Memory Card
32 GB eMMC (Available space 15 GB)
Control Panel
5-line LCD, 5 LEDs (Online, Ready, Message, Work, Power Save), buttons, 10-key numeric keypad
Dimensions with Trays (W x D x H)
458 x 464 x 388 mm
Weight
Approximately 25 kg
Operating Environment
Temperature: 10–30 ºC (50–86 ºF)
Humidity: 20–80% relative humidity (non-condensing)
Power Supply
220–240 V (±10%) 50/60 Hz (±2 Hz)
Power Consumption
Max: approximately 1500 W or less
Operation: approximately 640 W or less
Standby: approximately 30.1 W or less
Sleep Mode: approximately 0.9 W or less
Typical Electricity Consumption (TEC): 0.39 kWh per week6
Noise Level
Sound Pressure7:
Operation: Single-sided mode 65 dB or less (monochrome)/66 dB or less (color)
Double-sided mode 67 dB or less (monochrome)/68 dB or less (color)
Standby: 48 dB or less
Sound Pressure8
Operation: Single-sided mode 50 dB or less (monochrome)/51 dB or less (color)
Double-sided mode 52 dB or less (monochrome)/52 dB or less (color)
Standby: 33 dB or less
Consumables
Cartridges
TONER T10, Black (13,000 pages9)
TONER T10, Cyan (10,000 pages10)
TONER T10, Magenta (10,000 pages11)
TONER T10, Yellow (10,000 pages12)
TONER T10L, Black (6000 pages13)
TONER T10L, Cyan (5000 pages14)
TONER T10L, Magenta (5000 pages15)
TONER T10L, Yellow (5000 pages16)
Accessories and Options
Devices
Paper Feed Unit PF-D1 (550-sheet Cassette), three
CST. Feed Unit AV1 (550-sheet Cassette Base)
Barcode Printing Kit D1 (enables barcode printing capability)
PCL Font Set A1 (enables Unicode printing with SAP and supports Andale font)
Standard Base P2
Standard Base AA1
MiCard Multi (ID card reader with RFID or magnetic cards with uniFLOW)
MiCard Plus (ID card reader with RFID or magnetic cards with uniFLOW)
